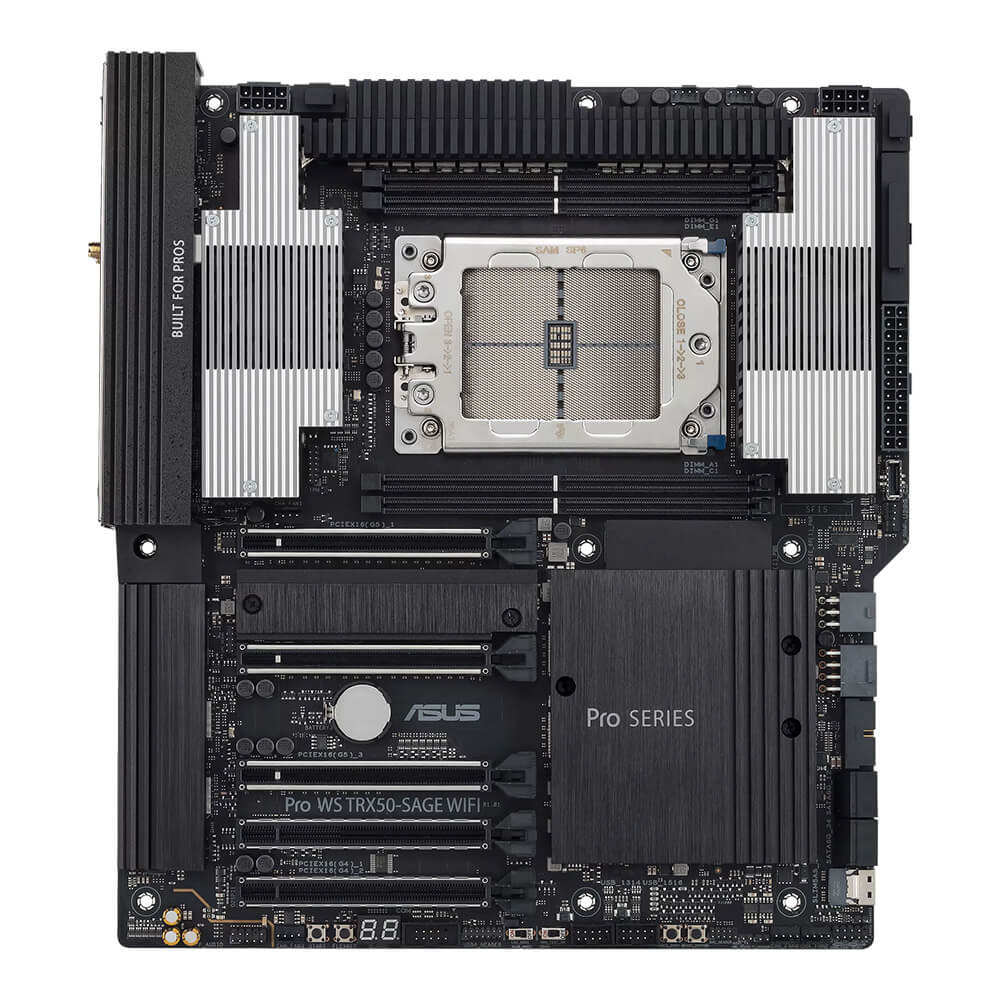

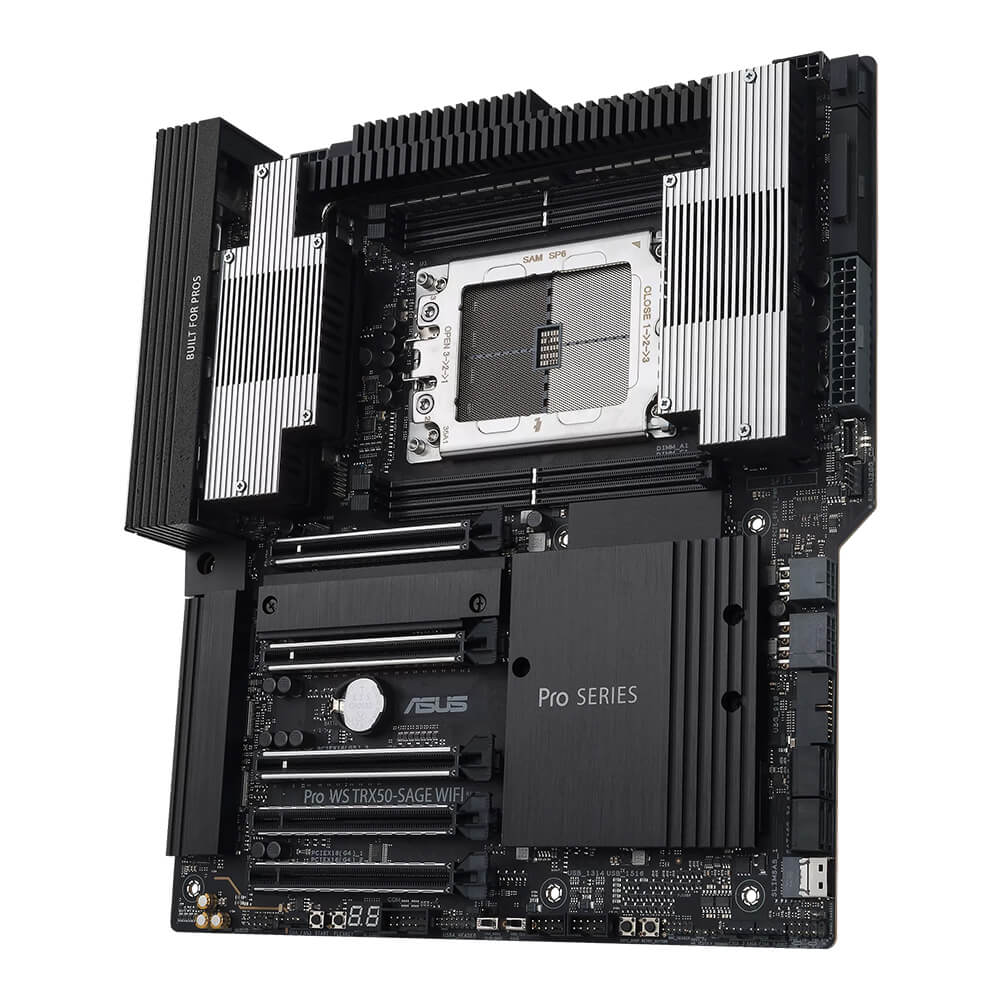

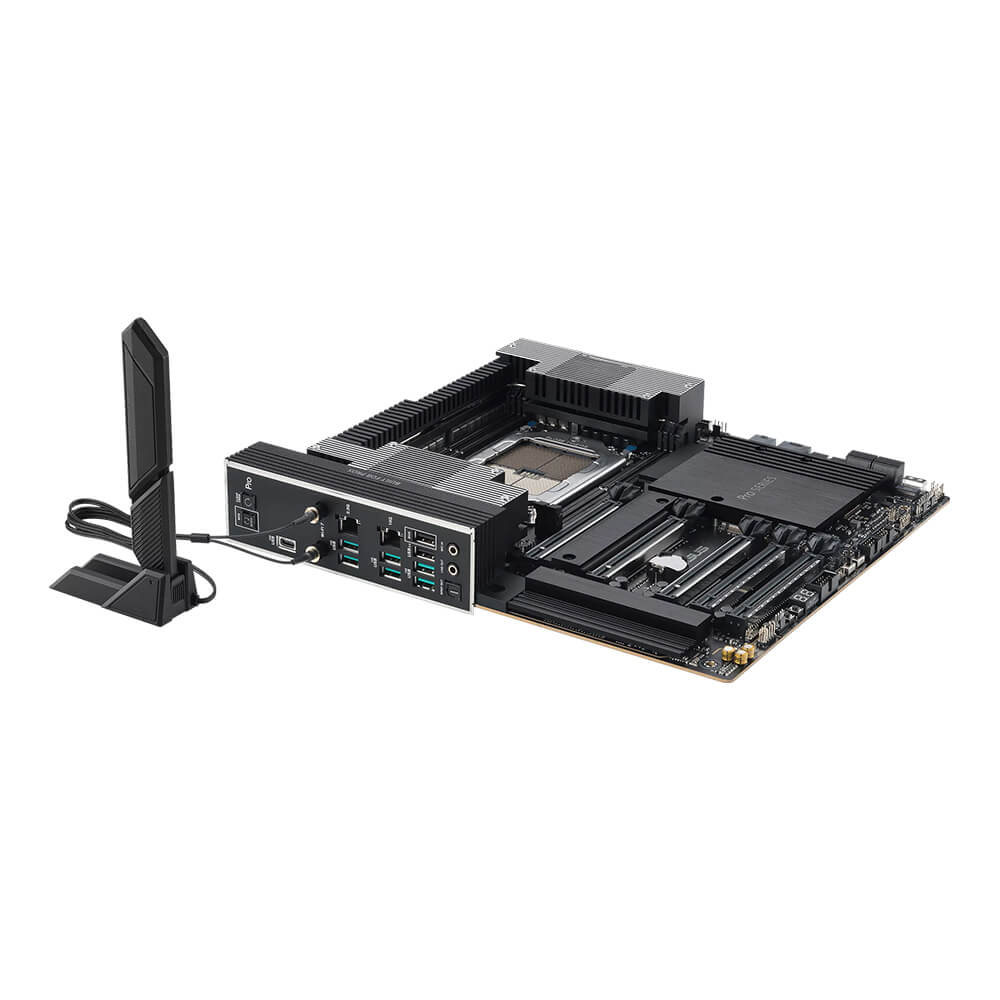

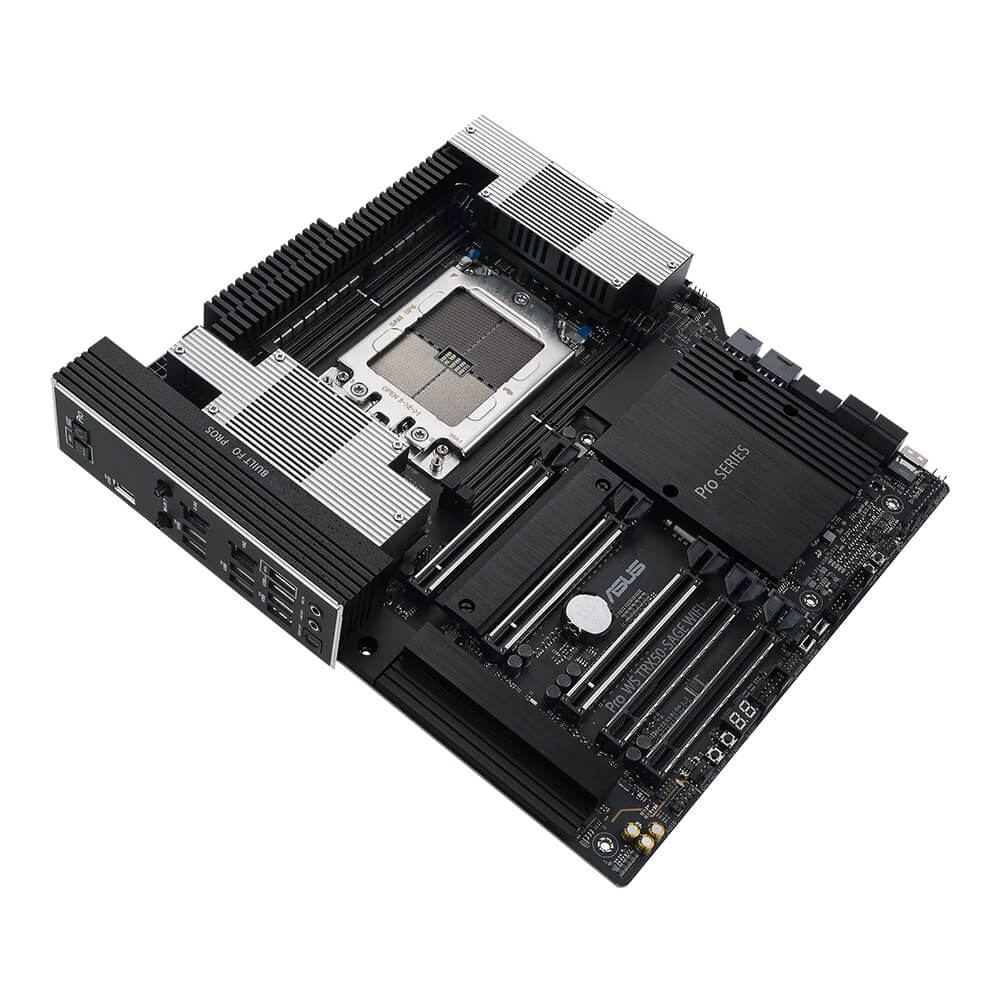

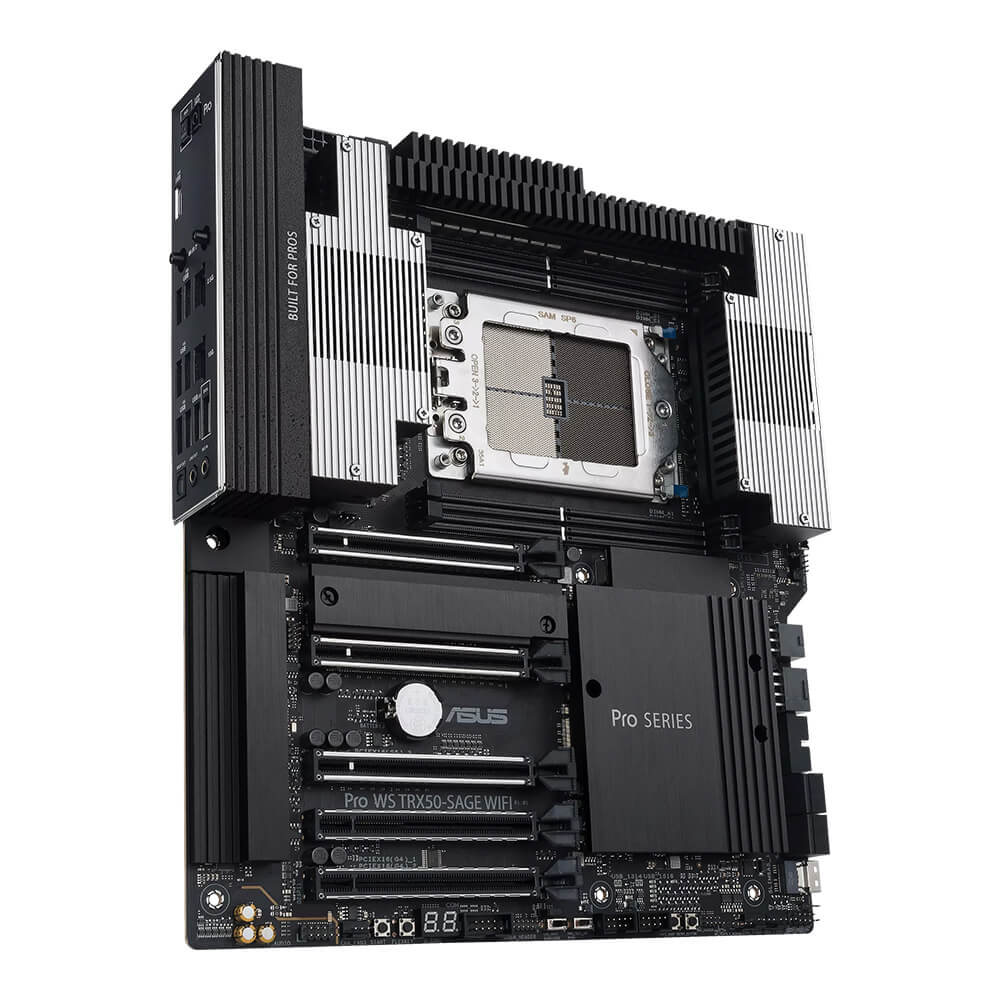

Name: Mainboard ASUS Pro WS TRX50-SAGE WIFI DDR5 (Bluetooth)
Brand: ASUS
SKU: 323
Price: 24999000 VND
Availability: InStock
Rating: 3 (735 reviews)

Mainboard ASUS Pro WS TRX50-SAGE WIFI DDR5 (Bluetooth)

Mã SP: SP323

3 đánh giá Lượt xem: 735

Socket: sTR5

Kích thước: CEB Form Factor

Khe cắm RAM: 4 khe DDR5, chỉ hỗ trợ ram ECC Rdimm

Khe cắm mở rộng: 2 x PCIe 5.0 x16 slots, 1 x PCIe 5.0 x16 slot(x8 mode), 1 x PCIe 4.0 x16 slot, 1 x PCIe 4.0 x16 slot(x4 mode)

Khe cắm ổ cứng: 3 x khe M.2 và 4 x cổng SATA 6Gb/s

Giá niêm yết: ~~29,999,000 đ~~

Giá khuyến mại:

24,999,000 đ [Giá đã có VAT]

Tuỳ chọn thuộc tính

Mainboard ASUS Pro WS TRX50-SAGE WIFI DDR5 (Bluetooth)

24,999,000 đ

Mô tả

Sản phẩm Bo mạch chủ

Tên Hãng Asus

Model Mainboard ASUS Pro WS TRX50-SAGE WIFI DDR5 (Bluetooth)

CPU hỗ trợ Ryzen™ Threadripper™ 7000 Series Processors Ryzen™ Threadripper™ PRO 7000 WX-Series

Chipset AMD TRX80 Chipset

RAM hỗ trợ 4 x DIMM slots, DDR5, ECC Registered Memory

Khe cắm mở rộng 2 x PCIe 5.0 x16 slots 1 x PCIe 5.0 x16 slot(x8 mode) 1 x PCIe 4.0 x16 slot 1 x PCIe 4.0 x16 slot(x4 mode)

Ổ cứng hỗ trợ M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)AMD TRX50 Chipset M.2_3 slot (Key M), type 2280(supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports

Cổng kết nối (Internal) Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x W_PUMP+ header 4 x 4-pin Chassis Fan headers 2 x 4-pin VRM Fan header (with VRM FAN onboard) Power related 2 x 24-pin Main Power connectors 2 x 8-pin +12V Power connectors 2 x 8-pin PCIe to CPU power connectors 1 x 6-pin PCIe Power connector 1 x 8-pin PCIe Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports 1 x SlimSAS port USB 1 x USB 20Gbps connector supports USB Type-C® 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 1 x BMC header1 x COM Port header 1 x USB4 header1 x FlexKey button 1 x Front panel audio header (F_AUDIO) 1 x Start button 1 x Safe boot button 1 x ReTry button1 x LN2 mode jumper 1 x Slow mode switch 1 x SPI TPM header (14-1pin) 1 x 10-1 pin system panel header 1 x Chassis intrusion header 1 x Thermal Sensor header

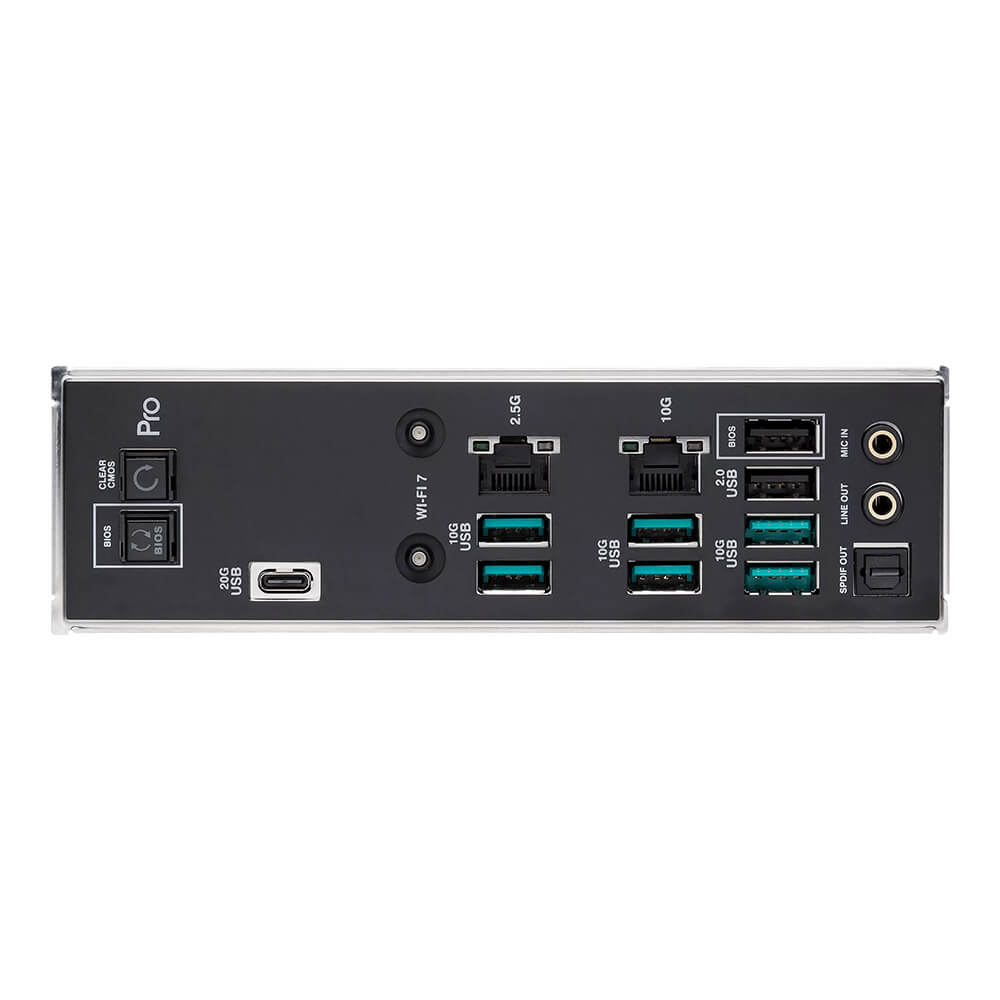

Cổng kết nối (Back Panel) 1 x USB 20Gbps port (1 x USB Type-C®) 6 x USB 10Gbps ports (6 x Type-A) 2 x USB 2.0 port (2 x Type-A) 1 x Wi-Fi Module 1 x Marvell®AQtion 10Gb Ethernet port 1 x Intel®2.5Gb Ethernet port 2 x Audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button 1 x Clear CMOS button

LAN / Wireless 1 x Marvell®AQtion 10Gb Ethernet 1 x Intel®I226-LM 2.5Gb Ethernet Wi-Fi 7 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band Support Wi-Fi 7 160MHz bandwidth, up to 2.8Gbps transfer rate. Bluetooth®v5.4

Kích cỡ CEB Form Factor 12 inch x 11 inch (30.5 cm x 28.0 cm)

Mainboard ASUS Pro WS TRX50-SAGE WIFI DDR5 (Bluetooth)
