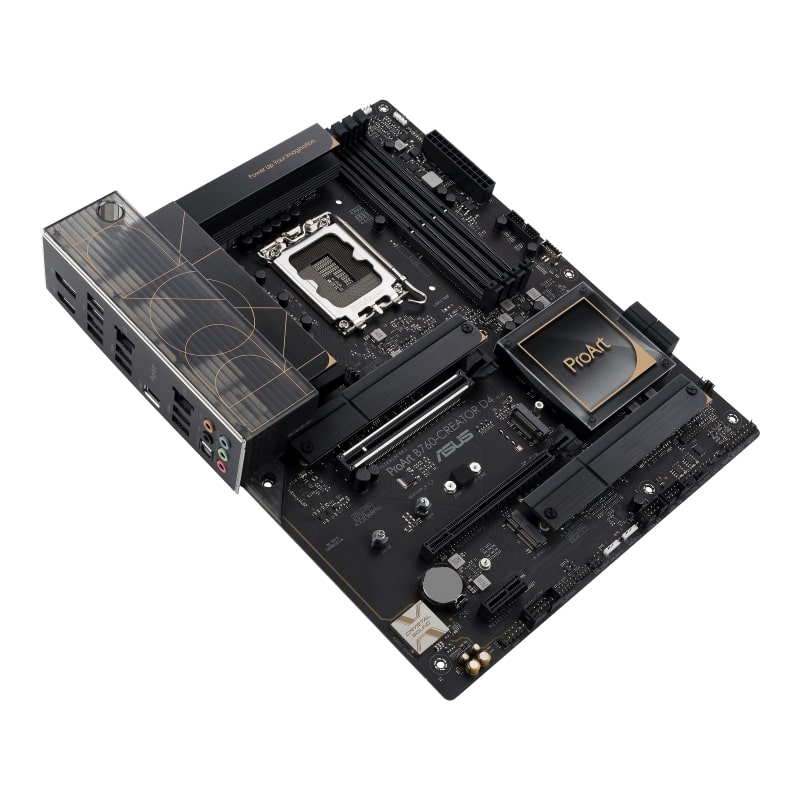

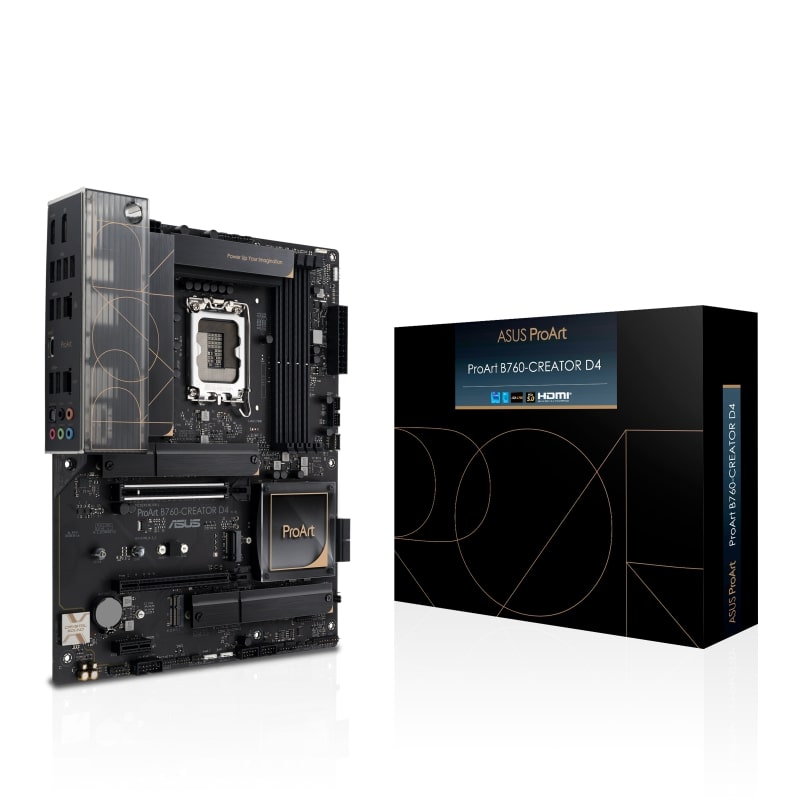

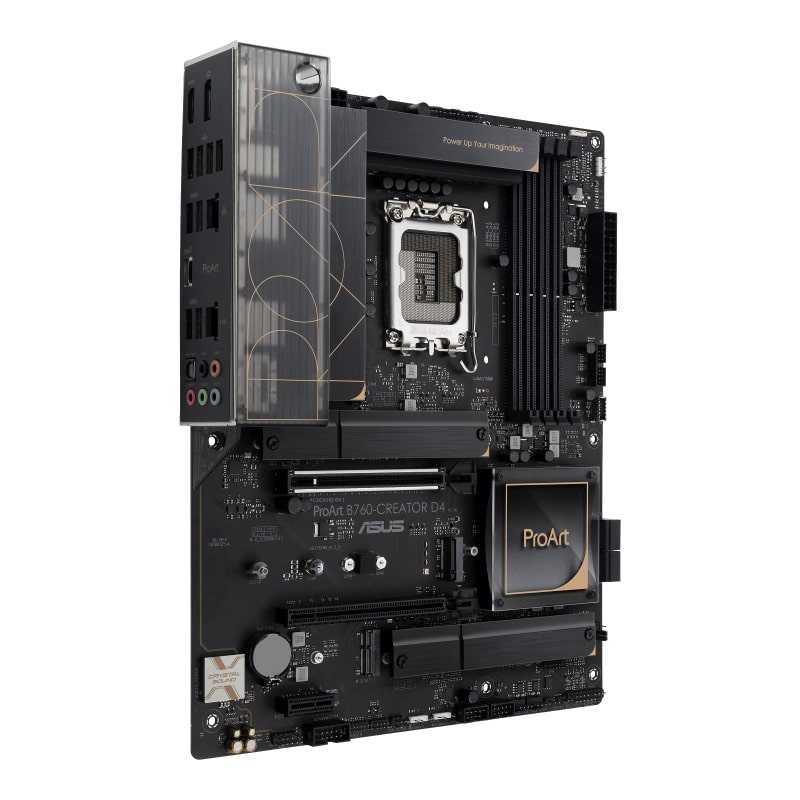

Mainboard Asus PROART B760-CREATOR DDR4
Mã SP: SP1636
5 đánh giá
Lượt xem: 597
Socket: LGA1700 hỗ trợ CPU intel thế hệ 12 & 13, Pentium® Gold and Celeron® Processors
Kích thước: ATX
Khe cắm RAM: 4 khe (Tối đa 128GB)
Khe cắm mở rộng: 1 x PCIe 5.0/4.0/3.0 x16 slot, 1 x PCIe 4.0 x16 slot (supports x4 mode), 1 x PCIe 3.0 x1 slot
Khe cắm ổ cứng: 3 x M.2 slots and 4x SATA 6Gb/s ports
Giá niêm yết:
7,999,000 đ
Giá khuyến mại:
5,999,000 đ [Giá đã có VAT]
Tuỳ chọn thuộc tính
5,999,000 đ
Mô tả
Sản phẩm
Bo mạch chủ
Tên Hãng
Asus
Model
ProArt B760-CREATOR D4
CPU hỗ trợ
Intel
Chipset
B760
RAM hỗ trợ
4 x DIMM, Max. 128GB, DDR4 Non-ECC, Un-buffered Memory
Khe cắm mở rộng
Intel®13th & 12th Gen Processors
1 x PCIe 5.0/4.0/3.0 x16 slot
Intel®B760 Chipset*
1 x PCIe 4.0 x16 slot (supports x4 mode)
1 x PCIe 3.0 x1 slot**
** PCIe X1 shares bandwidth with M.2_2. PCIe X1 will be disable when M.2_2 runs at PCIe x4 mode by manually enabled
Ổ cứng hỗ trợ
Total supports 3 x M.2 slots and 4x SATA 6Gb/s ports*
Intel®13th & 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110
- Intel®13th & 12th Gen processors support PCIe 4.0 x4 mode.
Intel®B760 Chipset**
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 mode)***
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports***
* Intel®Rapid Storage Technology supports SATA RAID 0/1/5/10.
*** M.2_2 slot shares bandwidth with PCIe X1 and WiFi Key E. M.2_2 will run at PCI 3.0 x2 mode either a device is detected at PCIe x1 or WiFi Key E slot.
Cổng kết nối (Internal)
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Storage related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 header supports additional 2 x USB 3.2 Gen1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x AURA RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x M.2 slot (Key E)
1 x SPI TPM header (14-1pin)
1 x 20-5 pin System Panel header
1 x Thermal Sensor header
1 x Thunderbolt™ header
Cổng kết nối (Back Panel)
1 x USB 3.2 Gen 2 port (1 x USB Type-C®)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI®port
1 x Realtek 2.5Gb Ethernet port
1 x Intel®1Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
LAN / Wireless
1 x Realtek 2.5Gb Ethernet
1 x Intel®1Gb Ethernet
ASUS LANGuard
M.2 slot only (Key E, PCIe)*
*Wi-Fi module is sold separately
Kích cỡ
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
