Name: Mainboard Asus TUF GAMING B760M-PLUS WIFI DDR5
Brand: ASUS
SKU: 1938
Price: 4599000 VND
Availability: InStock
Rating: 5 (110 reviews)

Mainboard Asus TUF GAMING B760M-PLUS WIFI DDR5

Mã SP: SP1938

5 đánh giá Lượt xem: 110

Socket: LGA1700 hỗ trợ CPU Intel thế hệ thứ 12, 13 và 14

Kích thước: Micro ATX

Khe cắm RAM: 4 khe (Tối đa 192GB)

Khe cắm mở rộng: 1 x PCIe 5.0 x16 slot, 1 x PCIe 4.0 x16 slot (supports x4 mode), 1 x PCIe 4.0 x1 slot

Khe cắm ổ cứng: 2 x M.2 slots and 4 x SATA 6Gb/s ports

Giá niêm yết: ~~5,099,000 đ~~

Giá khuyến mại:

4,599,000 đ [Giá đã có VAT]

Tuỳ chọn thuộc tính

Mainboard Asus TUF GAMING B760M-PLUS WIFI DDR5

4,599,000 đ

Mô tả

Sản phẩm Bo mạch chủ

Tên Hãng Asus

Model TUF GAMING B760M-PLUS WIFI

CPU hỗ trợ Intel

Chipset B760

RAM hỗ trợ 4 x DIMM slots, Max. 192GB, DDR5 7200+(OC)/7000(OC) 6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory

Khe cắm mở rộng Intel®13th& 12thGen Processors 1 x PCIe 5.0 x16 slot Intel®B760 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 1 x PCIe 4.0 x1 slot

Ổ cứng hỗ trợ Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* Intel®13th& 12thGen Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel®B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports

Cổng kết nối (Internal) I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x AURA RGB header 1 x Clear CMOS header 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt™ (USB4®) header

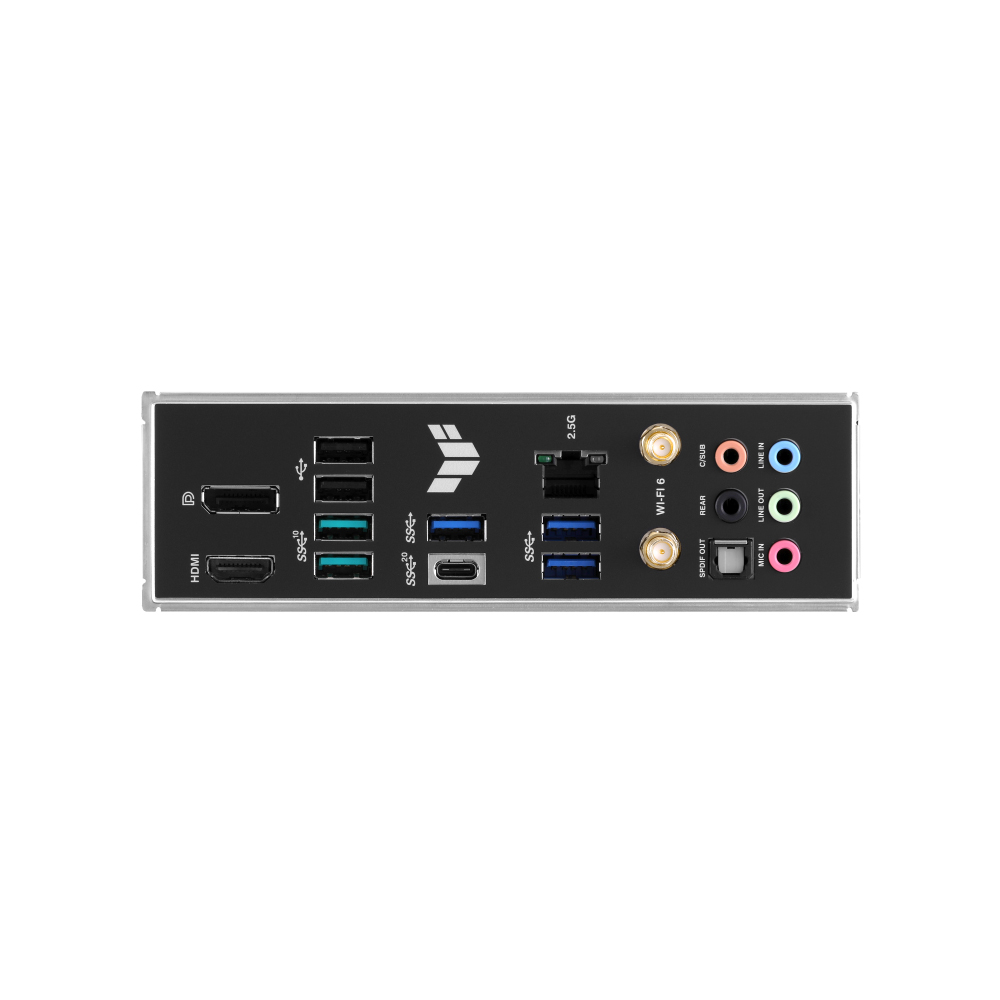

Cổng kết nối (Back Panel) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 2 x USB 3.2 Gen 2 ports (2 x Type-A) 3 x USB 3.2 Gen 1 ports (3 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI™ port 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port

LAN / Wireless Wi-Fi 6 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth®v5.2 1 x Realtek 2.5Gb Ethernet TUF LANGuard

Kích cỡ mATX Form Factor 9.6inch x 9.6 inch ( 24.4 cm x 24.4 cm )

Mainboard Asus TUF GAMING B760M-PLUS WIFI DDR5
