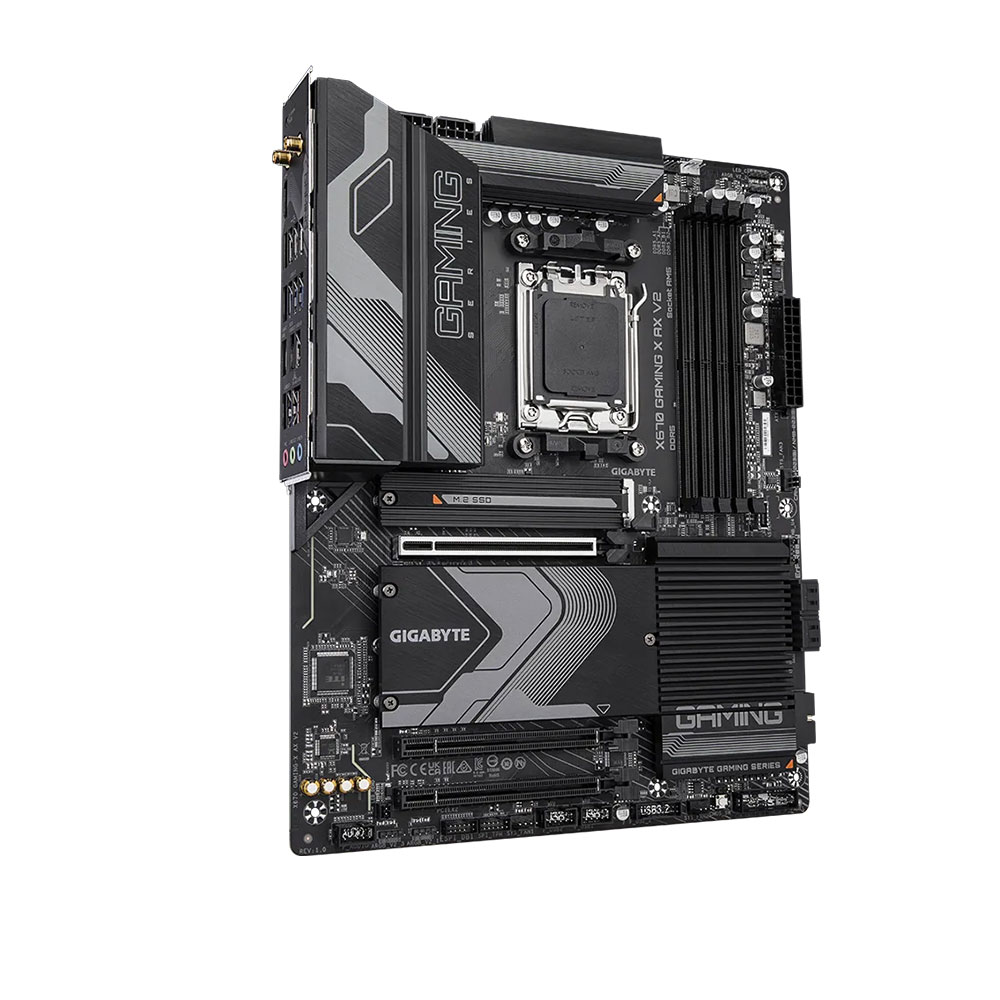

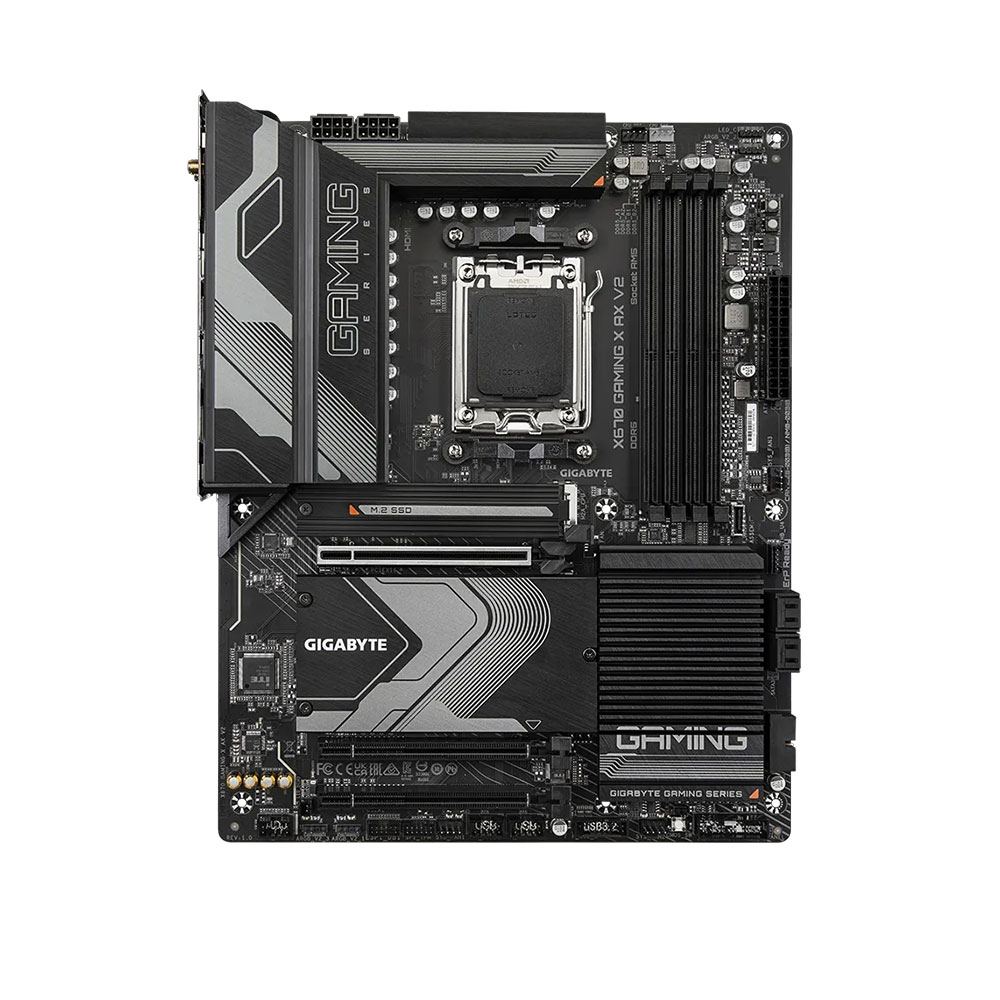

Name: Mainboard Gigabyte X670 GAMING X AX V2 DDR5 (Wifi+Bluetooth)
Brand: Gigabyte
SKU: 1371
Price: 7589000 VND
Availability: InStock
Rating: 4 (305 reviews)

Mainboard Gigabyte X670 GAMING X AX V2 DDR5 (Wifi+Bluetooth)

Mã SP: SP1371

4 đánh giá Lượt xem: 305

Socket: AMD Socket AM5 hỗ trợ CPU AMD Ryzen™ 7000 / Ryzen™ 8000 Series Processors

Kích thước: ATX

Khe cắm RAM: 4 khe (Tối đa 192 GB)

Khe cắm mở rộng: 1 x PCI Express x16 slot (PCIEX16), 1 x PCI Express x16 slot, 1 x PCI Express x16 slot

Khe cắm ổ cứng: M.2 connector, 4 x SATA 6Gb/s connectors

Giá niêm yết: ~~8,999,000 đ~~

Giá khuyến mại:

7,589,000 đ [Giá đã có VAT]

Tuỳ chọn thuộc tính

Mainboard Gigabyte X670 GAMING X AX V2 DDR5 (Wifi+Bluetooth)

7,589,000 đ

Mô tả

Sản phẩm Bo mạch chủ

Tên Hãng Gigabyte

Model X670 GAMING X AX DDR5

CPU hỗ trợ AMD

Chipset X670

RAM hỗ trợ Support for DDR5 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/6200(OC)/6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory

Khe cắm mở rộng 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x16 mode AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4) 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2)

Ổ cứng hỗ trợ 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/2580 SSDs: AMD Ryzen™ 7000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 1/Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs Chipset: 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2C_SB, M2D_SB) 4 x SATA 6Gb/s connectors

Cổng kết nối (Internal) 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 4 x SATA 6Gb/s connectors 4 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C®header, with USB 3.2 Gen 2x2 support 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers 1 x THB_U4 add-in card connector 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only) 1 x power button 1 x reset button 1 x Clear CMOS button 1 x reset jumper 1 x Clear CMOS jumper

Cổng kết nối (Back Panel) 1 x Q-Flash Plus button 2 x SMA antenna connectors (2T2R) 1 x HDMI port 6 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 2 x USB 3.2 Gen 2 Type-A ports (red) 1 x USB Type-C®port, with USB 3.2 Gen 2x2 support 1 x RJ-45 port 3 x audio jacks

LAN / Wireless Realtek®2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) Realtek®Wi-Fi 6E RTL8852CEWIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard (Actual data rate may vary depending on environment and equipment.)

Kích cỡ ATX Form Factor; 30.5cm x 24.4cm

Mainboard Gigabyte X670 GAMING X AX V2 DDR5 (Wifi+Bluetooth)
